CENTAUR CP
Over the course of a summer, the Centaur CP immunoassay analyzer was redesigned from the ground up. The goal for the project was to bring this product up to date with the rest of Siemen’s Healthineer’s branding
Redesign Project
Original Design-Created in 2006
What is an Immunoassay Analyzer? Immunoassay analyzers are used to identify and detect the concentration of specific substances in a sample, usually using an antibody as a reagent.
This type of testing equipment is on the front lines of COVID-19, The Centaur CP is the top of the line benchtop analyzer and tests the blood for a positive or negative COVID test result.
“The ADVIA Centaur® CP Immunoassay System is a mid-volume, high-throughput bench top system that enhances your in-house test capability.” -Siemens
Siemens Healthineers’ flagship product “The Atellica Solution”
Siemens’ Branding Language
Bring the design of outdated Centaur CP to the current form language and maximize the ergonomic experience based on the touchpoints.

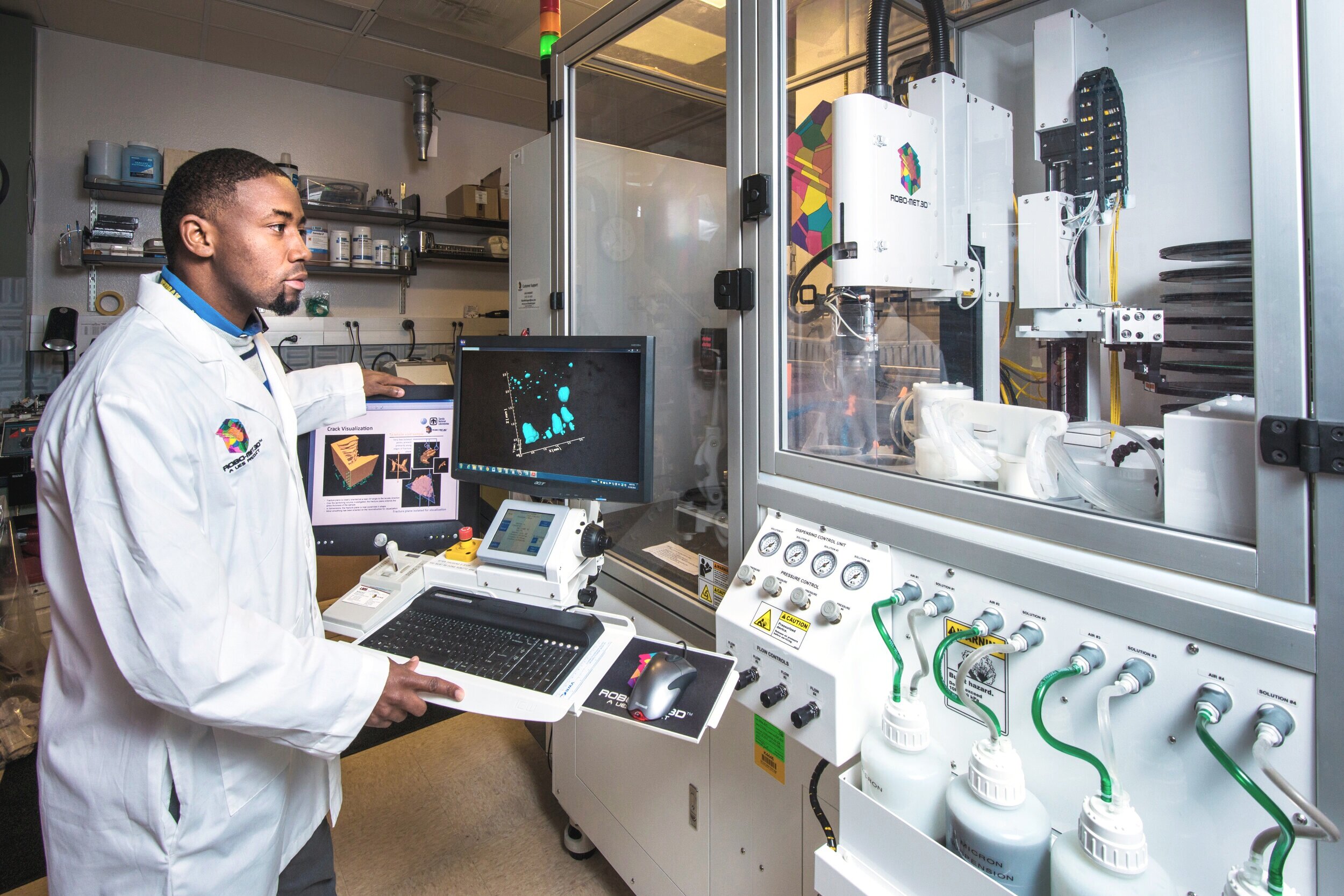

The Medical Lab Professional, is the profession that directly handles such equipment. They run the lab tests for countless types of viruses and pathogens. I had a chance to speak with the woman responsible to train Medical Lab Professionals on Siemens equipment, to gain her insight on the areas that need improving.

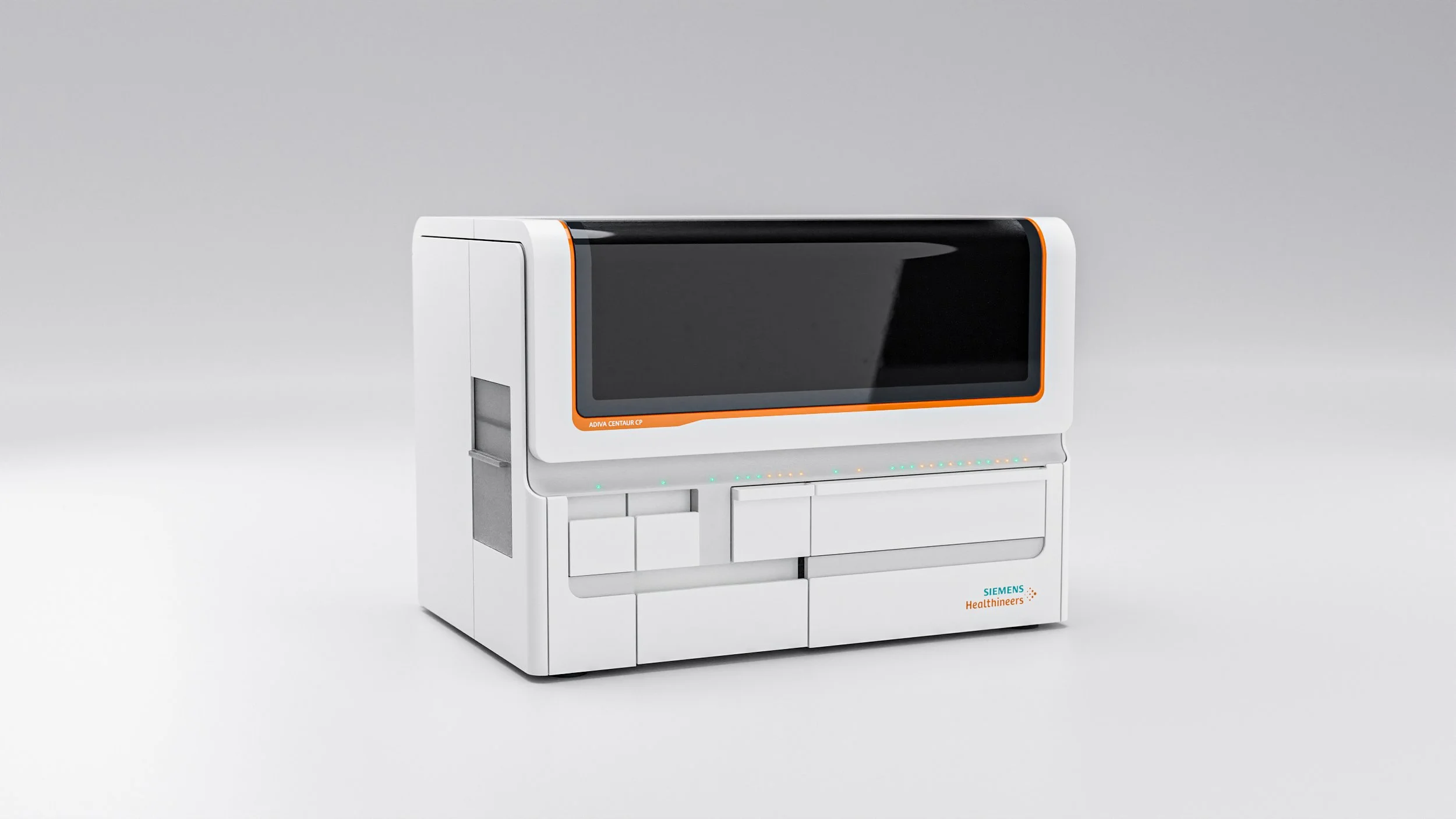

THE FINAL DESIGN

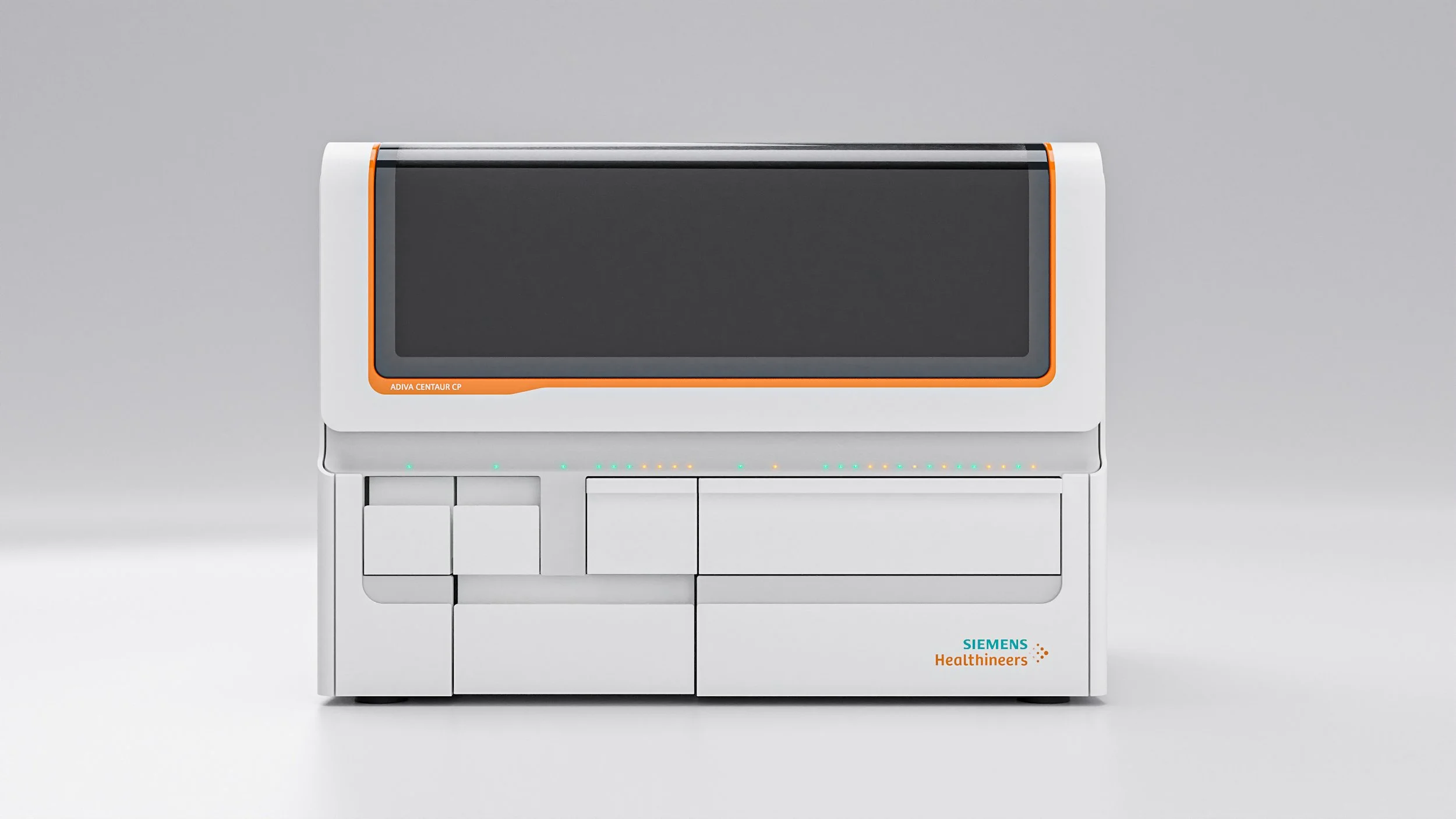

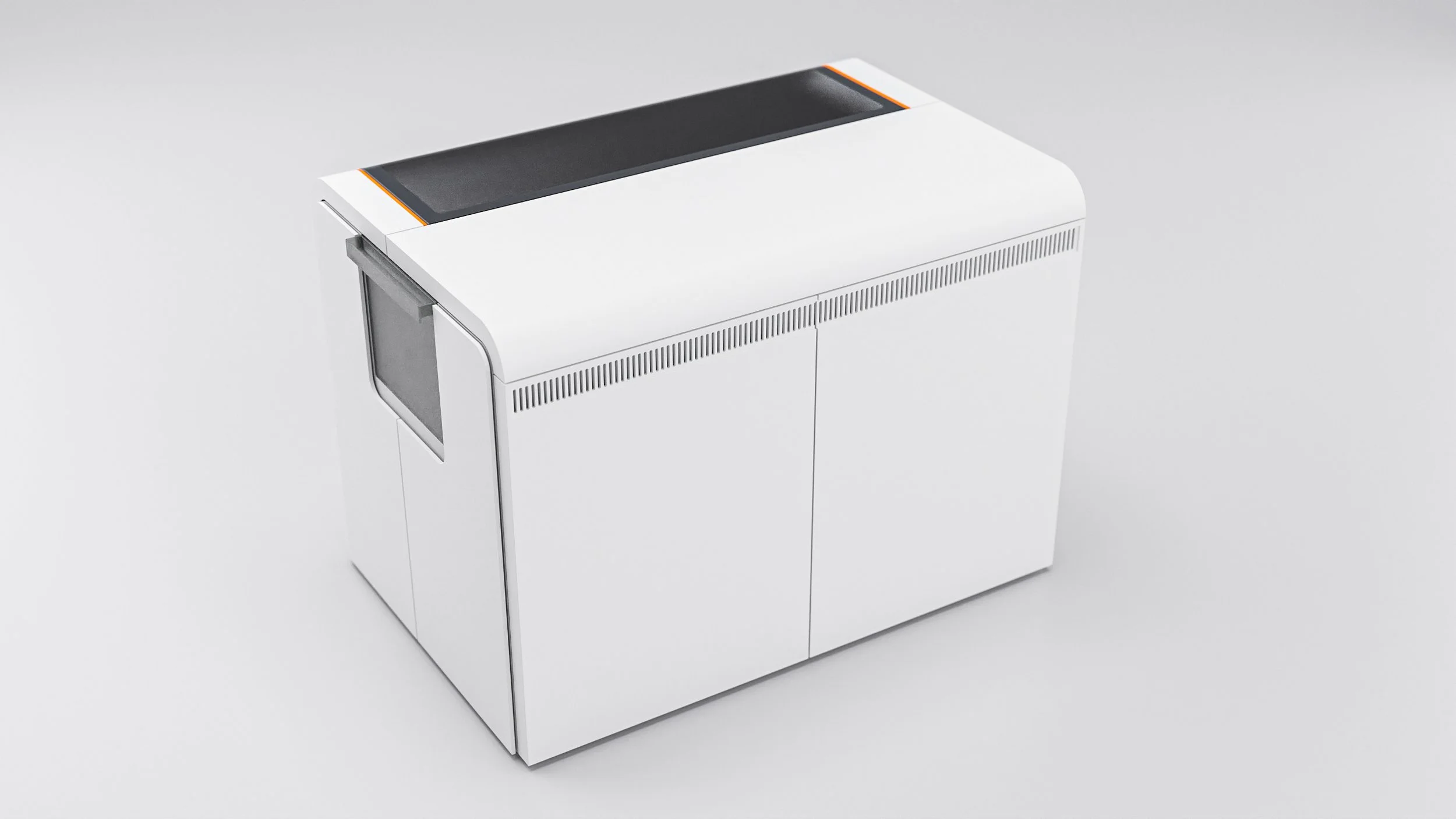

Concept | UNDERTOW | redefining what a Siemens benchtop analyzer can be. Using new ergonomic solutions, the Centaur CP line has never been so unique.
DESIGNING FOR THE USER
Creating a comprehensive design to pursue inclusivity under ergonomic constraints.
Ergonomic Touchpoints
Problem Areas
Uncomfortable compartment handles
Awkward top cover usability
Dirt particles enter cuvette loader
Confusing Indication Lights.
Sample Compartment
Cuvette Loader
Ancillary Reagent
Acid and Base Reagents
Sample Tip Drawer
Reagent Compartment
Solid Waste
Liquid Waste + Wash 1
Designed Elements
Brand Consistency and Ergonomics
Inspired by Siemens Healthineers’ Hydra. Maintains brand consistency.

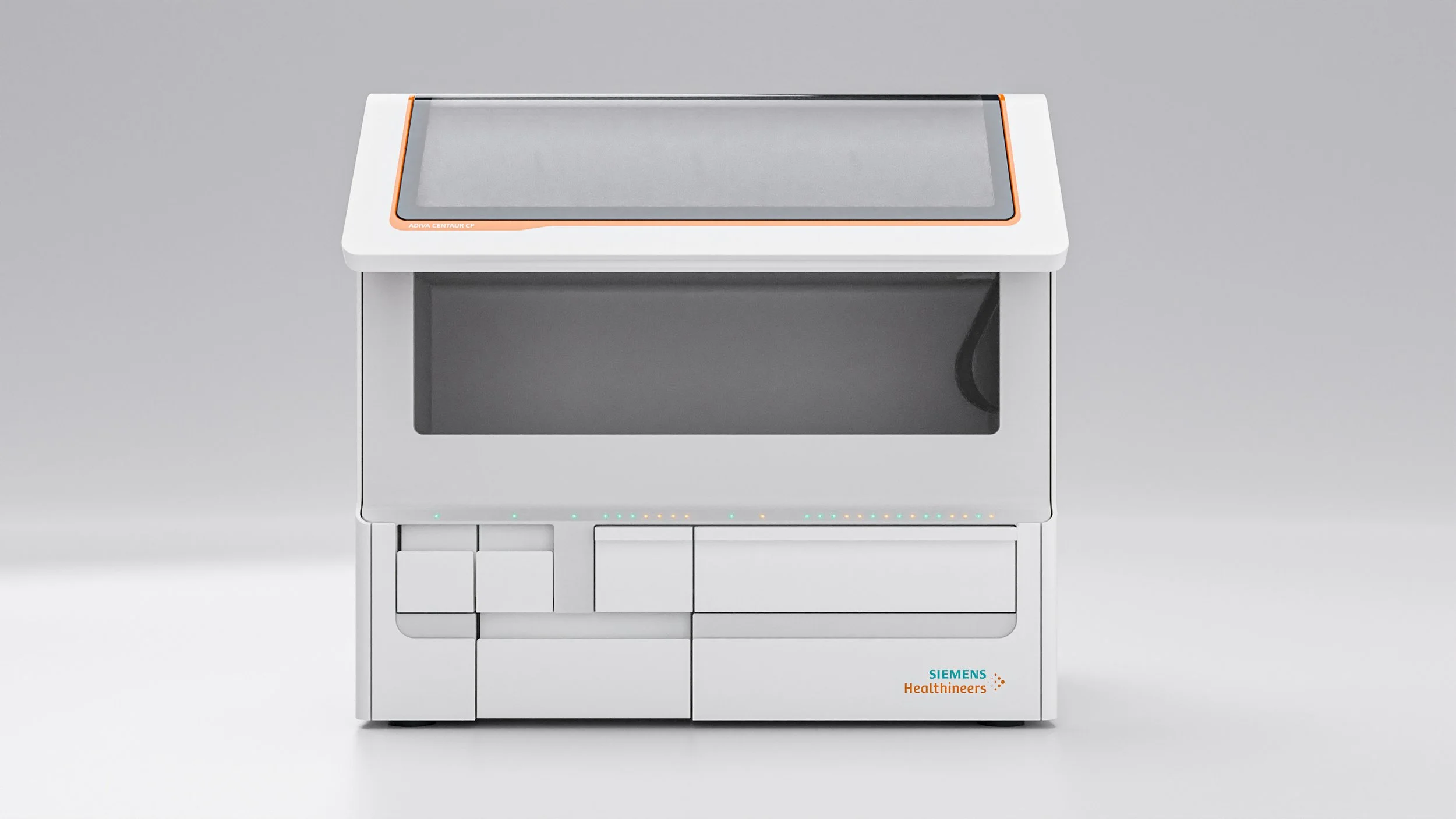

Top Cover
Top cover designed to make the handle as accessible as possible. The top cover handle is exposed for ease of use.

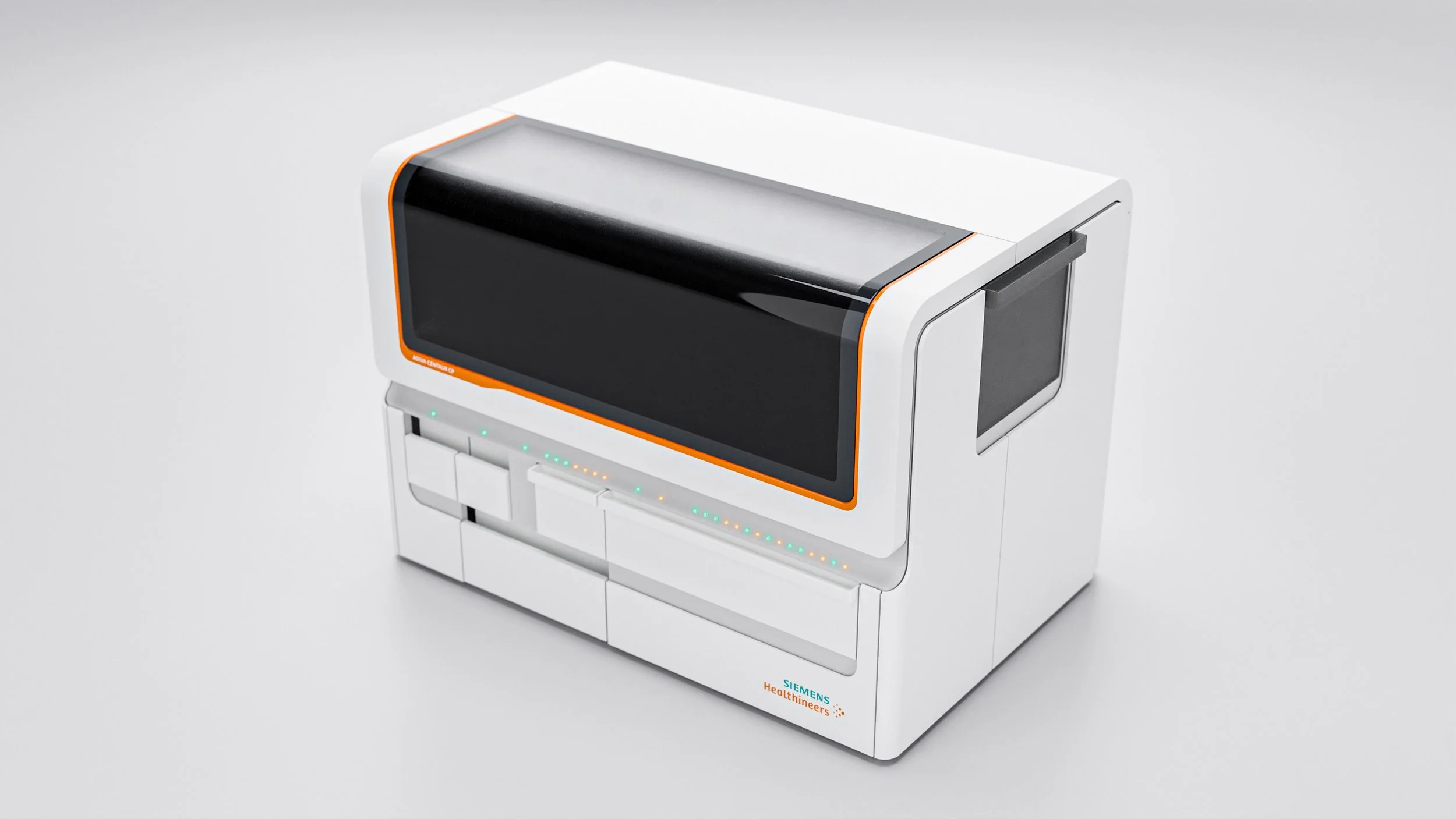

Door Compartments
More surface area exposed to allow easier usage. Handles of door-like compartments are consistent across entire design.
Drawer Compartments
Handles of drawers are designed consistently across entire product.
Funnel
Like other door-like compartments, the cuvette shoot has a slot like design to make it intuitive to use.
Partial Re-Designs
This semester long project ended in four final designs. Two complete redesigns and two partial redesigns. Click below to view the partial redesign concepts.
